ROLL PIN · INSTALL GUIDE
A roll pin should go in straight, seat flush, and leave no mark. Most don't - not because the pin is wrong, but because a drift punch and a hammer give you nothing to control. The punch slips off the pin, skates across the surface, and leaves a scar you can't buff out. Here's how to seat one cleanly, every time.
Why a punch slips (and marks the work)
A standard roll pin is a rolled spring-steel sleeve, slightly larger than its bore, that compresses on the way in and springs back to grip. Driving it means fighting that spring tension the whole stroke. A drift punch sits on top of the pin with nothing holding the two aligned - so the moment the pin tips, the punch walks off the edge and onto your part. Soft materials (brass, aluminum, anodized or finished surfaces) show every slip.
The two failure modes:
- Walk-off: Punch loses the pin face, gouges the surrounding surface.
- Mushrooming: Repeated off-axis hammer blows splay the pin's lead edge before it's seated, so it jams.
Both come from the same root cause: nothing keeps the punch, the pin, and the bore on one axis.
What "clean and square" actually requires
- The right hole. A roll pin needs a hole slightly larger than its nominal diameter — too tight and it shaves or jams, too loose and it won't grip. (See the recommended hole sizes in our reference chart.)
- Support behind the work. Back the part with a solid, flat surface or a bench block so the bore can't deflect. Unsupported parts flex and the pin goes in cocked.
- Axial alignment. The driving force has to stay on the pin's centerline through the full stroke. This is the part a hand punch can't guarantee — and the reason a captured tool exists.
-
Start it square. Get the pin seated a few thousandths dead-straight before you commit force. A pin that starts crooked finishes crooked.
The clean method, step by step
- Confirm the hole. Match your pin's nominal diameter to the recommended drill/hole size before you start. A correctly sized hole does half the work.
- Support the part. Flat, solid backing under the bore. A bench block with a relief hole lets the pin pass through if it's a through-hole.
- Start the pin square. Set the pin into the chamfer by hand. It should sit centered, not tipped.

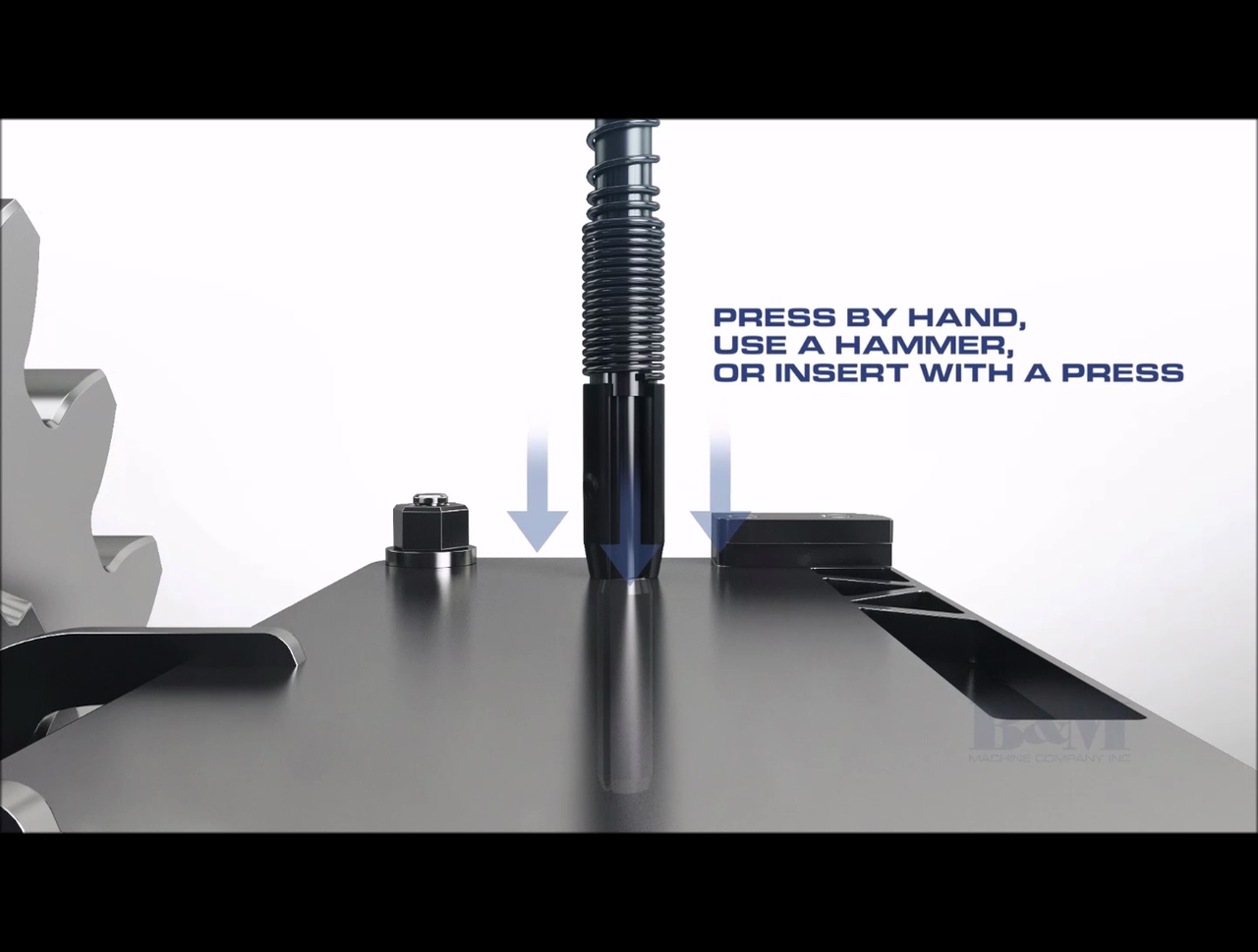

- Drive it on-axis. This is where a captured insertion tool earns its place: it holds the pin and drives it straight, so there's no punch to slip and no surface to mark. Hand pressure, a tap, or a press — the pin stays on centerline either way.
-
Seat to flush (or to spec). Stop when the pin is flush or at your called depth. Don't over-drive — you'll mushroom the trailing edge.
Where a hand punch fails and a tool wins
A drift punch is fine on scrap, on hidden joints, on parts you don't care about marking. The problem is everything else: finished assemblies, tight bores you can't get a hammer swing at, repeat work where one slip ruins a part you've got hours into.
The B&M Pintool was built for exactly this. It captures the pin and drives it square — by hand, with a light tap, or under a press — so the pin goes where you aim it and nothing touches the surrounding surface. It's a precision shop's answer to a problem precision parts can't afford: a tool that protects the finish instead of risking it.
> **Bottom line:**< A clean roll pin install is a sizing problem and an alignment problem. Get the hole right, support the work, and keep the drive on-axis — and the marring stops being a risk.
